MULTIVITI 12 CHASSIS FOR STRADDLE TRACTORS

The versatile MULTIVITI chassis for narrow vineyards

Designed to fit perfectly with the OPTIMUM 245 and 345 high-clearance straddle tractors, the MULTIVITI 12 chassis is an essential solution for winegrowers looking for robust, versatile and easy-to-use equipment. It easily accommodates the pruner for topping and trimming, the PELLENC pruners, and other tools suited to narrow vineyards. Compact and manoeuvrable, it can be attached quickly and is fully compatible with PELLENC high-clearance tractor implements, guaranteeing driving comfort, productivity and profitability all year round. The MULTIVITI 12 chassis supports winegrowers in all their mechanised maintenance work in narrow vineyards.

Find a dealerRequest a quote





Comfortable working in narrow vineyards

  • Intuitive operation using the EASY DRIVE joystick
  • Direct, optimum visibility of attached implements
  • Reduced operator fatigue thanks to ergonomic design

Save time with the MULTIVITI 12 chassis

  • Quick, easy width adjustment thanks to the MULTIVITI 12 frame's integrated scale guides
  • Simple, precise adjustments to adapt the tool to the vineyard block
  • Easy to attach and detach, without extended downtime

Optimum handling in narrow vineyards

  • Compact chassis for working in the tightest vine rows
  • High amplitude vertical lift for easy headland turning
  • Optimised passes for greater efficiency on the farm

MULTIVITI 12 CHASSIS
FOR STRADDLE TRACTORS

MULTIVITI 12 CHASSIS

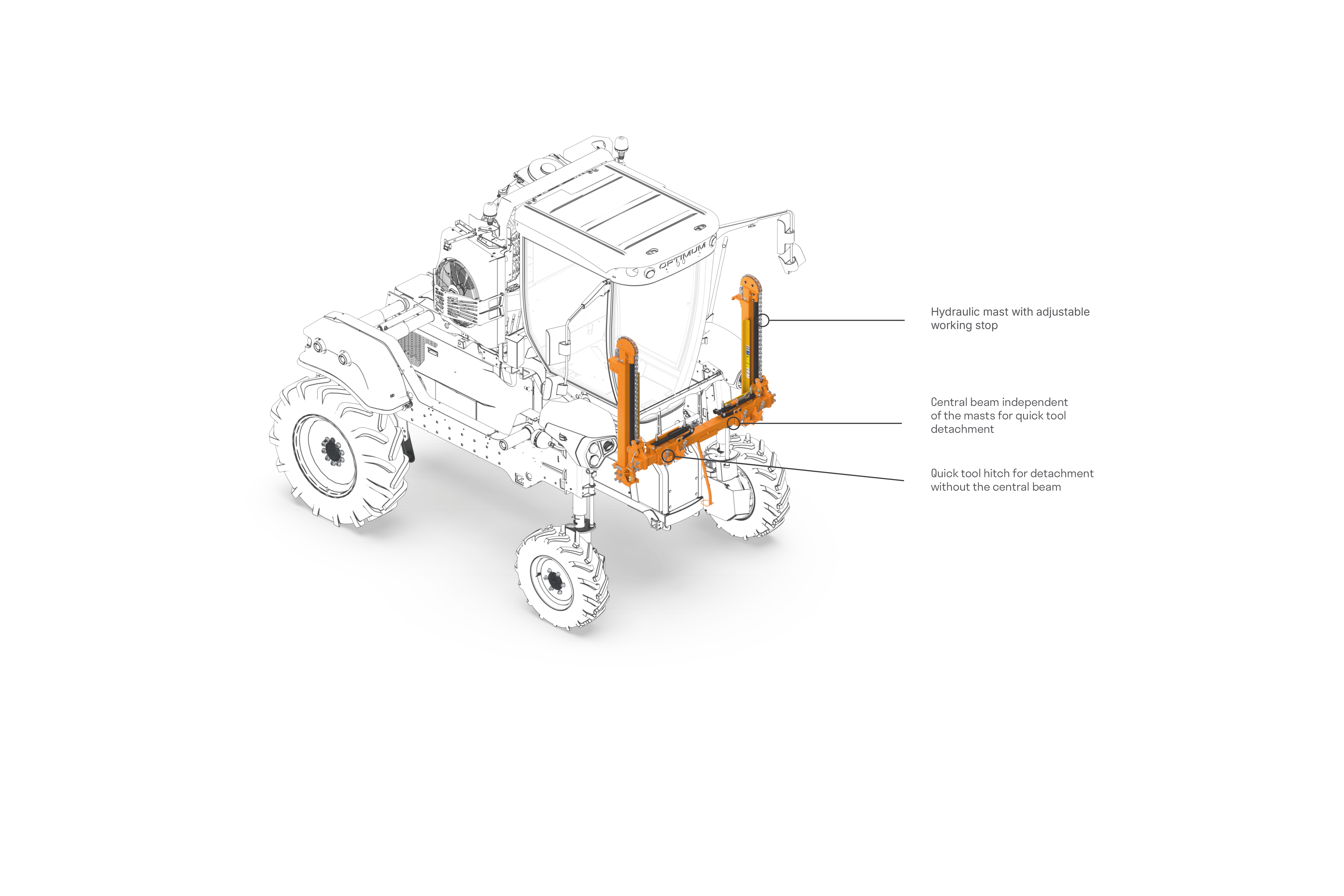

The MULTIVITI system allows quick coupling and uncoupling with a minimum of tools. With the push-pull option, the operator can make all the hydraulic connections safely, directly from the ground.

The MULTIVITI 12 chassis is primarily designed to accommodate PELLENC topping and pruning tools, as well as other tools adapted to narrow vines. Thanks to this compatibility, this chassis dedicated to narrow vines becomes a single support for working all year round, while optimising equipment investments.

Designed for the OPTIMUM 245 and 345 high-clearance straddle tractors for narrow vineyards (0.9 to 1.5 m between rows), the MULTIVITI 12 chassis user-friendly and efficient for every day vineyard operations.

With the MULTIVITI 12 chassis, attaching implements is quick and safe. From the cab of OPTIMUM 245 or 345 high-clearance straddle tractors, operators can easily control their implements using the EASY DRIVE joystick. Compact and ergonomic, the chassis makes manoeuvring easier in the narrowest rows and improves productivity throughout the season.

The MULTIVITI 12 chassis, with its quick hitch, multi-functionality and compact design, reduces working time and labour costs. Every pass is optimised, contributing to the overall profitability of the vineyard.

MULTIVITI 12 chassis
for straddle tractors
Vine row spacingfrom 0,9 to 1,5 m
Vertical hydraulic tool lift-
MULTIVITI rapid tool attachment-
Hydraulic connection of implements directly to the towing carriages
  •
Hydraulic tool width adjustment (stroke = 300mm)-
Removal feet (beam + tools)
  •
Compatible straddle tractors

OPTIMUM 245

OPTIMUM 345

Compatible PELLENC tools

F34_C DRIVE pruner

2-row magnetic pruner

DISCO and MARGUERITES pruners



- Standard equipment

  • Optional equipment






Machines viticoles :
PELLENC finance vos projets

Avec l’aide de partenaires de confiance, PELLENC a développé des solutions de financement avantageuses et adaptées à vos besoins.

En savoir plus

FAQ

MULTIVITI 12 CHASSIS

To be able to attach tools compatible with the narrow vine, other than those of the PELLENC brand, a mechanical interface or custom adapter may be required.

The MULTIVITI 12 chassis can be fitted with PELLENC trimmers, hedgers, and pre-pruners.

The MULTIVITI 12 frame is designed for:

The MULTIVITI 12 chassis is specially designed for narrow vineyards, with row spacings of 0.9 to 1.5 m.

Thanks to the MULTIVITI quick hitch system, attaching or detaching an implement takes just a few minutes. The operator can make all the hydraulic connections directly from the ground, in complete safety.
