STRADDLE TRACTOR OPTIMUM 345

OPTIMUM technology in a narrow straddle tractor

Designed for narrow vineyards, the OPTIMUM 345 high-clearance tractor delivers unmatched agility, superior maneuvrability, and all-season versatility. Equipped with the PELLENC Multifunction system, It handles every vineyard task, from maintenance to harvesting, throughout the year. The OPTIMUM 345 straddle tractor combines comfort and ease of use with high productivity. Thanks to its different undercarriage heights, its hydraulic variable track and the tightest turining radius on the market, it adapts to all driving modes in narrow vineyards, and enables you to make U-turns even in the tightest headlands. Step into the OPTIMUM 345 and experience the ultimate in operator comfort and safety. Thanks to its great modularity and wide choice of tool carriers, the OPTIMUM 345 is the ideal solution for maximizing productivity in narrow vineyards.

A straddle tractor with outstanding maneuverability for maximum agility

  • OPTIMUM 345 offers three frame clearance heights: 1.40 m (fixed frame, without harvesting head or tilt correction), 1.50 m and 1.65 m with tilt correction up to 10%, to accommodate different trellising heights and work in narrow vineyards

  • 90° turning angle and minimum turning radius of 3.4 m: for fast, efficient U-turns, even on the narrowest headlands

  • Hydraulic variable track: adjustable from the joystick, it adapts to narrow vineyards with an inter-row width of between 0.9 and 1.5 m

  • Overcomes slopes of up to 40%, depending on attachments and weather conditions

A Premium cabin for unrivalled comfort

  • Safety cab, pressurized and filtered category 4 (EN 15695), protecting the operator from dust and plant protection products. The cab is equipped with air conditioning, heating and soundproofing

  • 315° panoramic visibility, offering an unobstructed view of the rows of vines, day and night, thanks to 12 work lights, ensuring perfect visibility all around your OPTIMUM 345 tractor

  • GRAMMER* pneumatic seat with vertical and longitudinal suspension and automatic weight detection, heated, ventilated and equipped with an anti-vibration system, ensuring an ergonomic and comfortable driving position

  • Top-of-the-range equipment including Bluetooth car radio, USB and 12 V sockets, numerous storage compartments including a refrigerated compartment for optimum comfort. Several high-definition color cameras* with night vision make maneuvering safer and easier

*Depending on model and options

Fingertip control

  • EASY DRIVE 18-key joystick for smooth, precise operation, with all main controls within easy reach

  • 10-inch EASY TOUCH touchscreen with intuitive pictograms for easy in-cab operation of all PELLENC tools

  • Automatic recognition of PELLENC tools, facilitating their configuration and use

  • Automatic parking brake engages automatically when the OPTIMUM 345 comes to a stop, and releases when the joystick is pushed forward. Headland brake* locks the inside rear wheel during tight turns for easier maneuvering in challenging headlands

*Depending on model and options

Powerful engines and transmissions for optimum performance

  • 156 HP DEUTZ engine complies with Stage V standard, offering power and environmental friendliness
  • Intelligent EASY POWER system automatically adjusts engine speed as required, reducing fuel consumption

  • Robust transmission with up to 40% gradeability, suitable for the most demanding terrain
  • TWINLOCK traction control system for optimum grip, even in difficult conditions

STRADDLE TRACTOR OPTIMUM 345

Straddle tractor 345

The 156 HP DEUTZ engine, combined with the EASY POWER system, offers optimum performance by adjusting engine speed to the needs of the implements and the straddle tractor, thus reducing fuel consumption, visible from the EASY TOUCH display. The engine can operate at very low speeds, from as low as 1,600 rpm.

The OPTIMUM 345 straddle tractor features a 90° turning angle, the shortest on the market, and an automatic headland brake system that locks the inside rear wheel when turning, guaranteeing optimum grip and facilitating maneuvering in tight spaces. Power-assisted steering and a very short wheelbase give you fluidity on headlands, for fast, efficient U-turns, even in the tightest of spaces.

The 10” touchscreen allows you to control tractor and implement functions with an intuitive interface, using clear pictograms and color codes for simplified navigation. EASY TOUCH gives you access to the cruise control and hectare counter. The touchscreen is located in the extension of your field of vision, allowing simultaneous visual control of the row and settings.

The 18-key backlit joystick provides an ergonomic grip, with all the main controls within easy reach. It enables smooth, precise driving by impulse or continuous pressure. The speed limiter is activated and deactivated directly from the joystick. The joystick’s position is fully adjustable via the armrest settings to accommodate the operator’s build and preferences. The system allows for real-time correction of the machine’s vertical alignment on slopes of up to 10%.

The OPTIMUM 345 vineyard straddler is equipped with push and pull tool carriers, offering exceptional versatility for all vineyard operations, from soil maintenance to harvesting, all year round.

OPTIMUM 345 integrated straddle tractor driving aids

  • Soil detection to harvest grapes at the lowest point, low and high stops automatically manage straddle height at row entry and exit
  • All harvesting head settings accessible via EASY TOUCH touch screen
  • Continuous visualization of straddle height and hopper level
  • ACTIV' row tracking: automatically aligns the harvesting head
  • Road mode: activates regulation height setting and blocks pendulum row tracking

A fluid, intelligent harvesting circuit

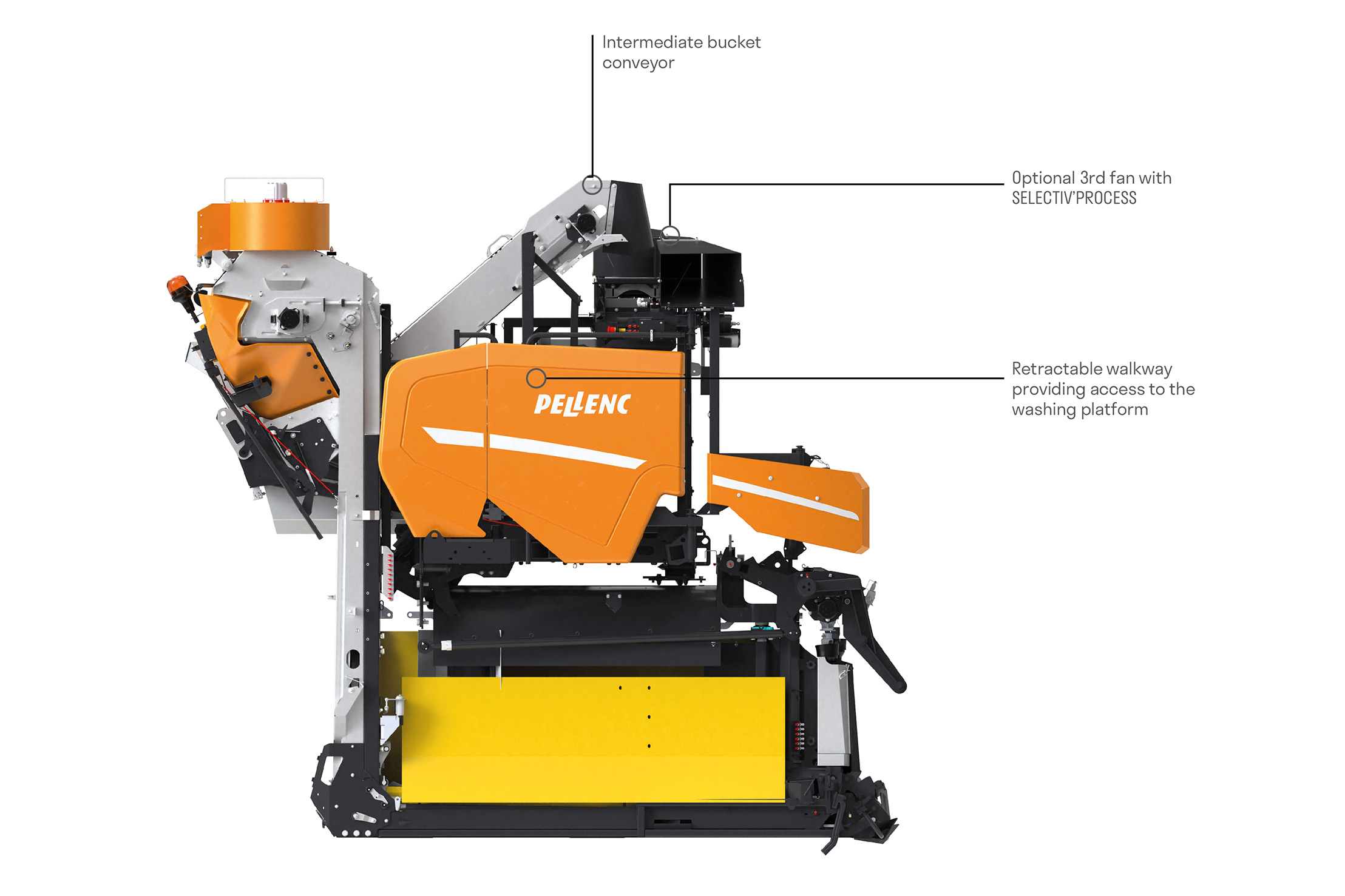

  • The OPTIMUM 345 harvesting head uses two conveyor belts to convey the harvest to the upper part of the machine
  • Trapezoidal conveyors ensure optimal centering of the harvest on the drive mechanism
  • Conveyor speed can be adjusted via the EASY TOUCH touch screen, independently of tractor speed
  • An alarm immediately signals any blockage, ensuring safe, uninterrupted operation

High-precision sorting quality

  • The harvesting head is equipped with the SELECTIV'PROCESS 2* system, offering ultra-precise berry sorting, with cleanliness measured at up to 99.82% according to the French Institute of Vine and Wine
  • Sorting table and vacuum settings directly in the cab

*Depending on model and options

High yield for narrow vineyards

  • OPTIMUM 345 straddle tractor ensures high, careful speed with 2.10 m sealing around vine trunks
  • 1400 L bucket capacity, equipped with auger, ensures complete filling and good crop distribution
  • The bucket can be moved 60 cm to the rear, for fast, remote emptying

Quick and safe cleaning of the harvesting head

  • Unmatched wash time in just 30 minutes
  • Washing function can be activated with a single click from the EASY TOUCH interface
  • Retractable platform with secure access for cleaning the entire harvesting head
  • Remote control to open all harvesting head components: aspirators, bins, sorter, sorting table and hopper tilting.

* Depending on model and option

A revolutionary harvesting process

The harvesting head aligns itself with the row using feelers. The operator is guided by light signals in the cab.

The OPTIMUM 345 harvester head adapts shaking in real time. Adjustable pinch and frequency stopping the machine.

3 fans* remove residual leaves. Adjustable power, easy cleaning thanks to their disengageable function.

*Depending on model and option

Harvest gently with the OPTIMUM 345 high-clearance straddle harvester. In-cab adjustment via EASY TOUCH touchscreen, high throughput of up to 50 tonnes per hectare at 4.5 km/h, anti-clogging sensor.

*Depending on model and option

Located above the hopper, the variable screen sorting table efficiently sorts all berries, adapting perfectly to different working conditions. The full, notched feed rollers convey the petioles to the screen rollers, which drop the berries into the hopper and discharge the waste to the outside. It is adjustable and can be disengaged from the cab.

*Depending on model and option
