STRADDLE TRACTOR 45

Compact vineyard tractor for remarkable efficiency and precision

The 45 single-row straddle tractor is the most compact in its category. Designed for narrow vineyards such as those in Burgundy, Champagne, Sancerre, Médoc and the Pays de la Loire. It is very agile and manoeuvrable, thanks to their slope correction. Its low weight reduces soil compaction.

The 45 straddle tractor is available with two types of cab to suit all seasons: an open canopy cab or a closed, air-conditioned cab with the option of Class 4 pressurisation. Versatile, it can be fitted with all the functions essential to vineyard work, with high hydraulic capacities despite their compact size (mowing, soil preparation, topping, pruning, augering, shredding). Its optimised structure guarantees stability and safety, even on the narrowest and spikiest headlands.

It is designed to fit most vineyards, with adjustable beam heights from 125 to 160 cm and overall lengths from 296 to 331 cm. A perfect selection for performance and multifunctionality.

Comfort and precise control for 45 straddle tractor

  • Low weight distribution for greater stability of the straddle tractor
  • All controls within easy reach for intuitive operation
  • Raised driving position for 360° all-round visibility
  • Instant, infinitely variable tool adjustment from the multifunction joystick
  • Transparent tunnel under the cab to monitor tillage in real time
  • Anti-vibration pneumatic seat and ergonomic armrest for optimum comfort
  • New HMI for precise adjustment of hydraulic flows

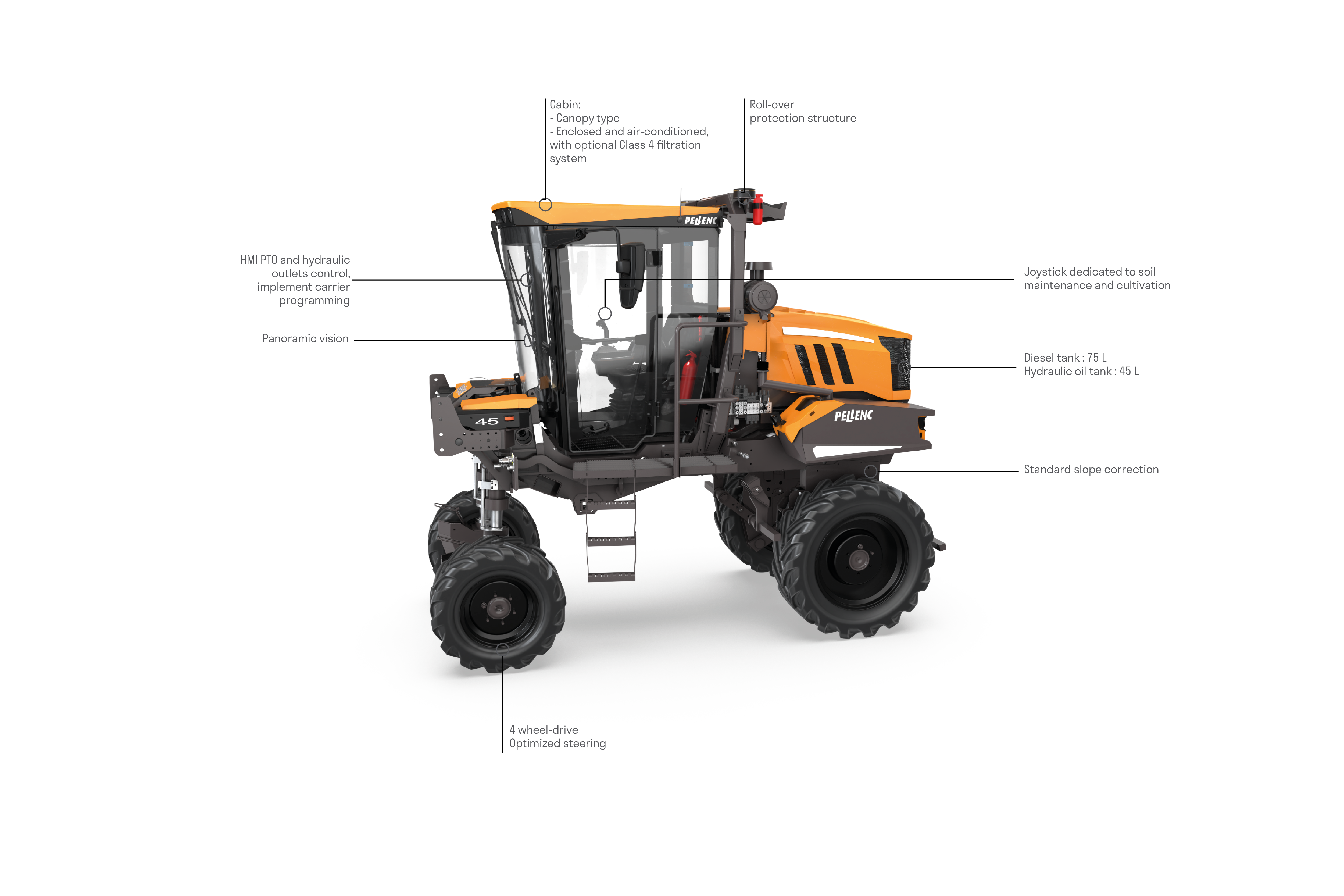

Cab 45 straddle tractor, safe and fully equipped

  • Robust one-piece chassis on 45 straddle tractor
  • Two cab configurations: open canopy cab with anti-crush bar or closed air-conditioned/heated cab, quieter and protected from dust, with optional pressurisation and category 4 filtration (EN 15695) Emergency stop on steering column
  • Manual and automatic parking brake
  • Standard equipment: sun visor, fire extinguisher, Bluetooth radio, 12 V socket
  • Electrically adjustable, wide-angle, twin-mirror exterior mirrors
  • 9 LED headlights for excellent visibility day and night
  • Tilt correction of up to 10% via in-cab joystick

The most modular straddle tractor in its category

  • Wheelbase of 2.55 m with 4 wheels for excellent manoeuvrability
  • Overall length just 3.60 metres
  • Fixed/modular track
  • Mechanically modular chassis for row spacing of 1 m to 1.5 m
  • Minimum turning radius of 2.6 metres: ideal for the narrowest of headlands
  • Cable control: immediate precision and ease of use
  • Transmission Poclain 4-wheel drive, high torque for demanding terrain
  • Excellent power-to-weight ratio
  • Gradeability up to 40%

Easy maintenance for 45 straddle tractor

  • Quick, tool-free access to all maintenance points
  • Easy access to air filter, fuel, engine oil and hydraulic system
  • Designed to reduce downtime and technical interventions

VINEYARD STRADDLE TRACTOR 45

STRADDLE TRACTOR 45

High performance Poclain transmission

  • High-torque Poclain 4WD transmission
  • Excellent power-to-weight ratio
  • Gradeability up to 40%, depending on implements, weight distribution and soil type
  • 2 forward speeds: one for work and one for road travel

Compliance with the latest anti-pollution standards

  • 3.3L Kubota engine, stage 5 / V3307 High torque

Optimised fuel consumption and extended range

  • Maximum torque from 1600 rpm for high output
  • With the enclosed cab option, the straddle tractor 45 guarantees low noise levels for optimum comfort
  • 75-litre RNG tank and 45-litre HV46 hydraulic tank
  • Hydraulic spreader bar

Combination of tools possible

  • 4 double-acting spool valves for vineyard tools
  • 2 additional single-acting spool valves for specific tool carriers

Quick and easy tool attachment

  • Quick, intuitive coupling and uncoupling system
  • Hydraulic couplers located at the front of the tractor and behind the cab
  • Remote control of tool carriers (agricultural type) from the ground for safe and comfortable attachment of implements
  • Front, pulled and pushed tool carriers

Hydraulic outlets with 2 independent flow rates

  • Main: 0 to 76 l/min  with direction reversal
  • Auxiliary: 0 to 45 l/min with direction reversal
  • Pump speed independent of engine speed

Tilt correction

  • 100 mm tilt adjustment directly from the straddle joystick
  • Adjustment from the new HMI screen

Efficient and precise tillage

  • High output: forward speed from 4 km/h to 8 km/h
  • Optimum visibility of tools for greater precision
  • 2 pairs of interceps and possibility of combined work
  • 4 crumbling discs

Mower

  • Compact design
  • Excellent visibility
  • Gauge wheel for working at the desired height

Knife pruner for a clean cut

  • Precise tracking on the row
  • Excellent manoeuvrability when entering and leaving the row
  • Fast, clean cut, maximum visibility of the tool

Trimmer with reciprocating cutterbars – front-mounted attachment

  • Clean cut without spraying to prevent tractor clogging
  • Working speed up to 8 km/h
  • Reduced front overhang: faster turning
  • Vertical lifting of cutting modules at row ends
  • Excellent visibility for optimum working comfort
  • Low centre of gravity keeps tractor balanced

DISCO pruning machine

  • Lightweight and compact
  • Boron-steel discs: clean cut and extended service life; no sharpening required, low maintenance
  • Adjustable discs to eliminate tendrils
  • Clean cut close to the bead thanks to adjustable lower discs

VISIO pruning machine

  • Discs for fine crumbling of vine shoots and wire cleaning
  • PRADINES blades sharpened on both sides for doubled service life
  • Low cage rotation speed for greater safety, no projections

Vineyard sprayer :

  • GC 500 mm twin-blade turbine: powerful, even air flow
  • Face-to-face spraying with 3 mounted jets or 4 mounted jets with air assistance
  • Hydraulic boom width adjustment (1 m to 1.50 m)
  • 5 section cuts controlled from the HMI
  • Integrated rinsing system and flow rate proportional to forward speed (GSP option)

*Only available with Class 4 cab option

STRADDLE TRACTOR 45
Height under beam1.25 to 1.50 m
Number of rows1 narrow
ApprovalT4-1
Vine width1 to 1.5 m
Overall height3,100 mm
Overall width1.4 to 1.9 m
Overall length3.60 m
Pneumatic seatYes
Cab access ladderYes
Electric mirrorsYes
Trip computer and multifunction joystickYes
Roll-over barRops standard
Work lights9 in total
Parking brakeManuel and automatic
Minimum turning radius2.6 m
Tilt correction10% (100 mm)
Crossing capacity40%
Wheelbase2.55 m
Road speed25 km/h
EngineKubota
Displacement3.3 L
Engine technologyStage 5
Engine power75 cv
Speed limiterYes
Fuel tank75 L
Hydrostatic 4-wheel driveYes
TWINLOCK traction controlYes
Front tyres280/70 R18
Rear tyres11.2R24
Pumps and maximum flowMain: 0 to 76 L/min with direction reversal
Auxiliary: 0 à 45 L/min with direction reversal
Spool valves8 spool valves available: 4 DE/ 4 SE


OUTSTANDING EFFICIENCY/MODULAR CHASSIS (STANDARD):

Equipped with a fixed track (modular assembly) and available in different underframe heights:

TRACK & CLEARANCE VERSIONClearance
1.25 m1.30 m1.35 m1.40 m1.45 m1.50 m1.60 m
Vine 1 m
Track 1.10
XXXXX
Vine 1.10 m
Track 1.20
XXX
Vine 1.20 m
Track 1.30
XX
Vine 1.30 m
Track 1.40
X
Vine 1.40 and 1.50 m
Track 1.50 and 1.60



Possible combinations
X  Prohibited combinations
