Tying tools with on-board battery, tied to your efficiency

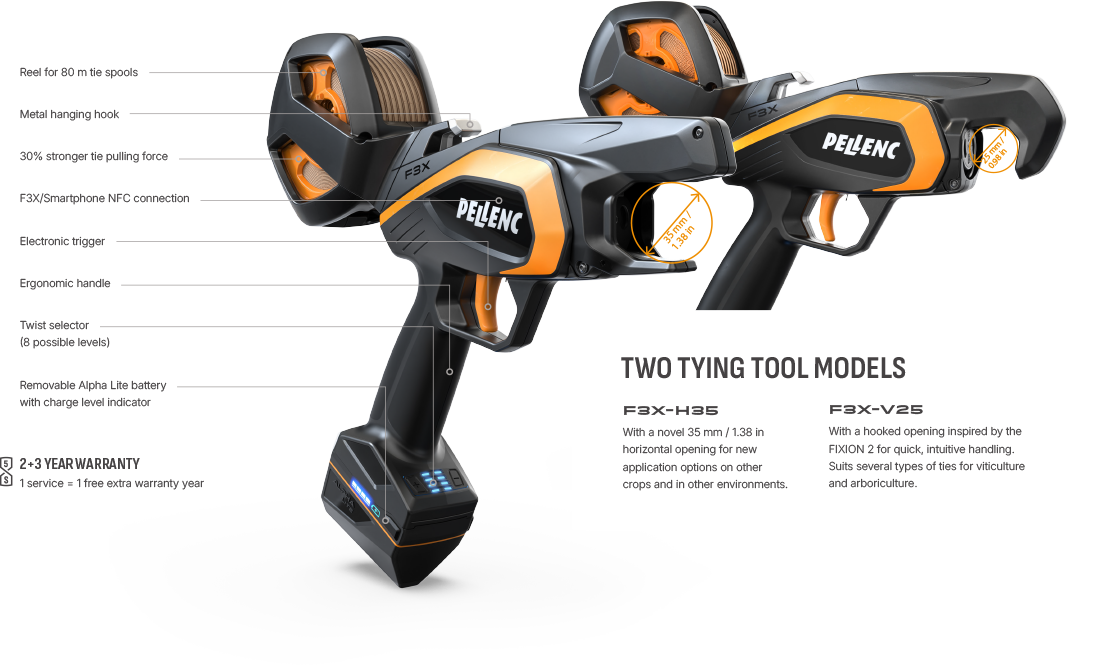

Designed to meet the needs of winegrowing professionals, the F3X-V25 and F3X-H35 ambidextrous electric tying tools represent the 4th generation of equipment combining performance, user-comfort and durability. Their design and ergonomics have been rethought to improve efficiency in the field, while protecting users' health.

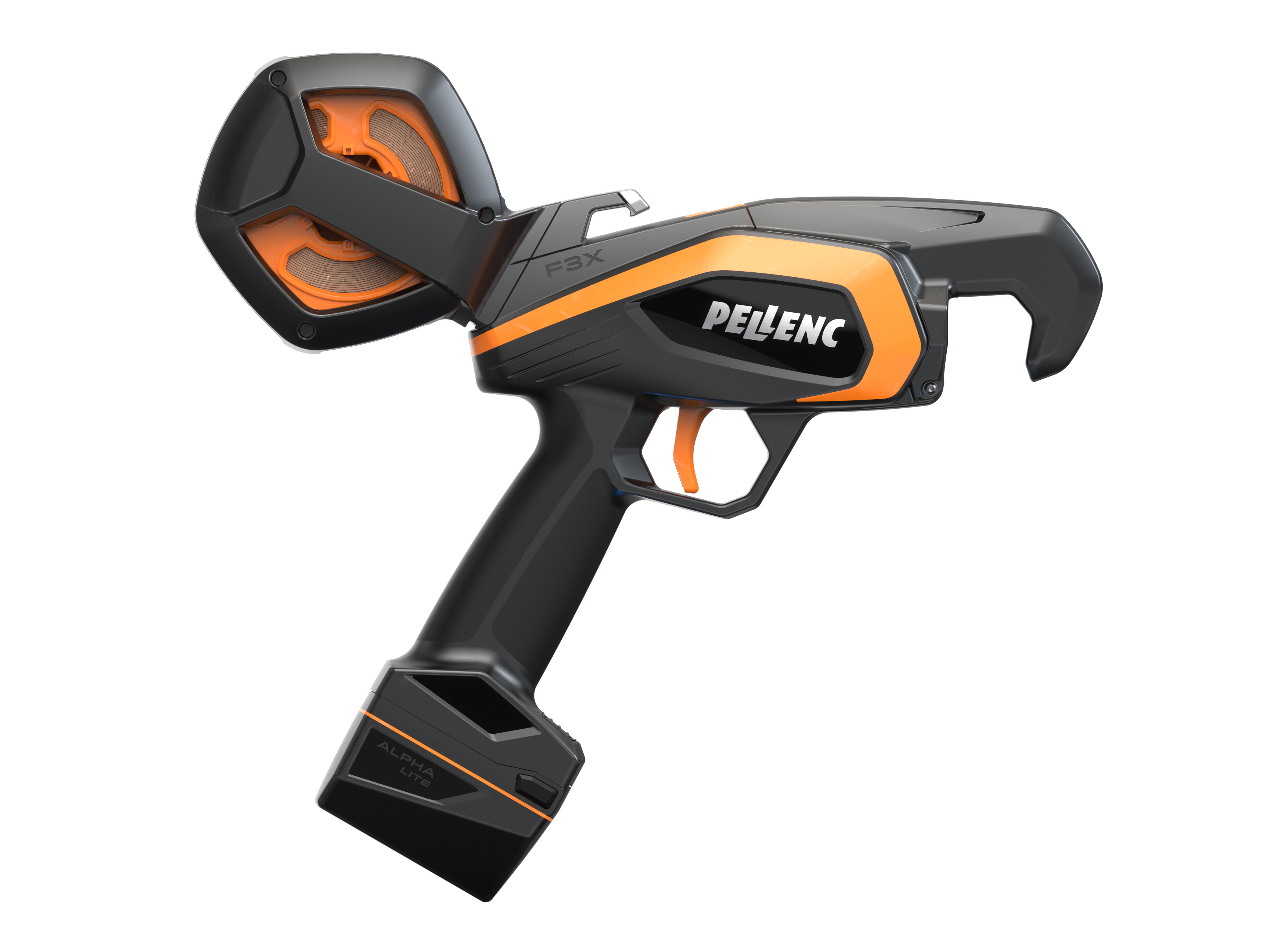

The F3X-V25 vine tying tool, with its 25 mm hooked opening, is ideal for making fast, close ties and ideally suited to winegrowing.

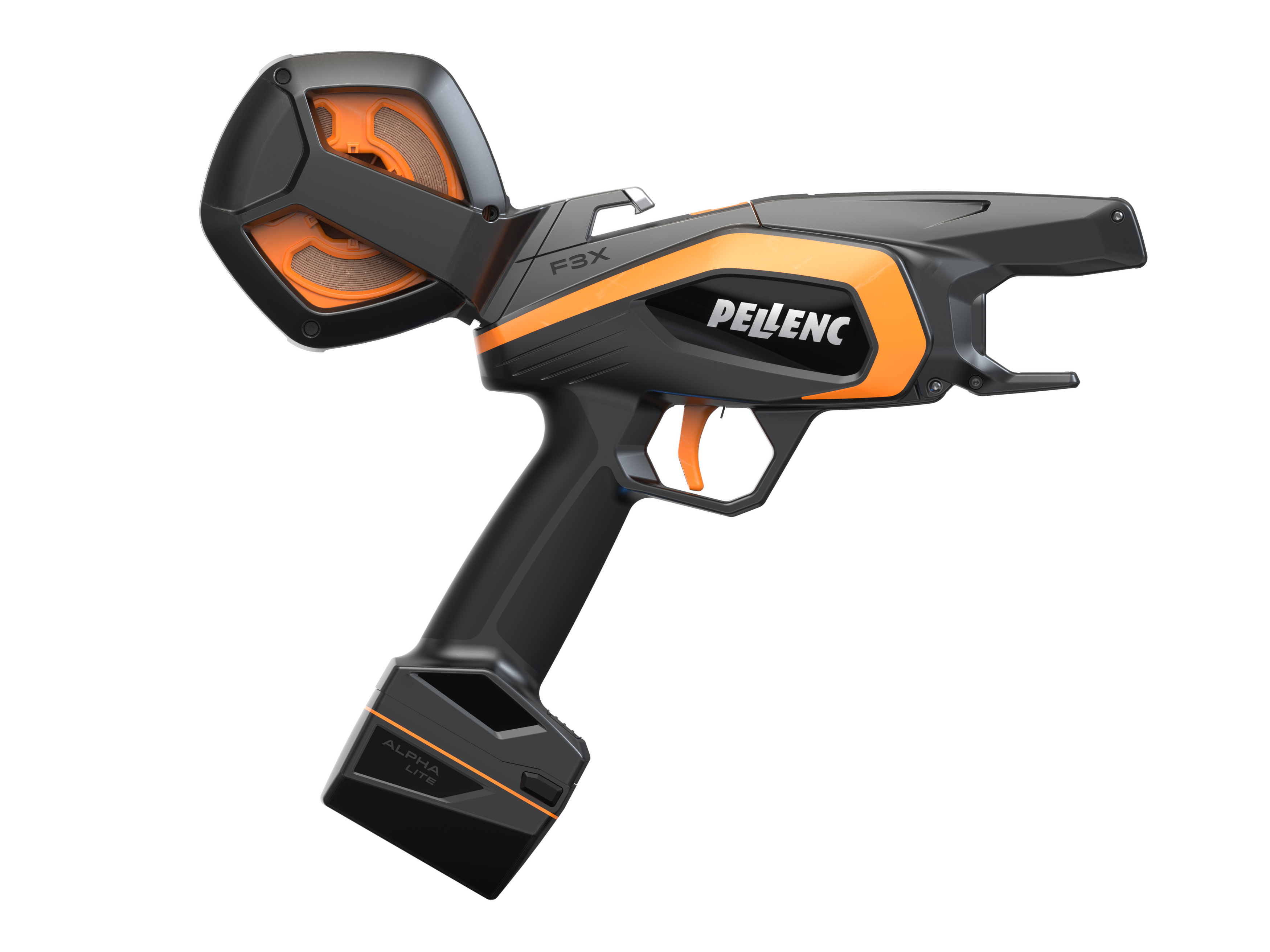

The F3X-H35 electric tying tool, with a 35 mm horizontal opening, can be used to attach even thicker branches, complex structures, irrigation systems and planters.
These tying tools are powered by the ALPHA LITE on-board battery, providing up to 13,000 ties per battery. Two spool formats are available:
- 80-metre on-board spool, up to 600 ties for the F3X-V25 tool and 480 ties for the F3X-H35 model, ideal for greater freedom of movement in the field.
- 200-metre belt spool, up to 1,500 ties for the F3X-V25 and 1,200 ties for the F3X-H35, recommended to maximise productivity during long tying-in sessions.
F3X tying tool available in autumn 2025.
Lightweight, ergonomic electric tying tools
- Perfectly balanced and comfortable to use: F3X – V25: 845 g and H35: 850 g with on-board battery
- Electronic trigger and comfort grip for long working days
- Designed to reduce musculoskeletal disorders, by being perfectly balanced in the hand
- Optimum freedom of movement with its on-board spool
Outstanding tying productivity
- Up to 120 ties per minute and up to 13,000 ties per battery
- Optimized spool replacement to maintain high work rate
- Up to 1,500 ties with the 200 m spool and up to 600 ties with the 80 m spool
- Ideal for long tying-in campaigns
Precise tying-in
- 8 twist levels to suit different types of plantation, varieties and growth stages
- Adjustable tightening to protect the bark of young branches or growing stems (from 1.5 to 12 turns)
- Reliable, injury-free support of the plant
Connected electric tying tools
You can configure and control your tying tools directly from the PELLENC CONNECT LITE app:
- Tie parameter settings
- Display performance and monitor the tool
- Maintenance warning
- Simplified equipment management
 |  | |
| F3X – V25 | F3X – H35 | |
|---|---|---|
| Tying diameter | 25 mm | 35 mm |
| Weight with battery | 845 g | 850 g |
| Weight with battery + reel + 80 m spool | 1,095 g | 1,100 g |
| Battery life – Ties/charging cycle | 13,000 | 13,000 |
| Tying rate – ties per min | 120 | 120 |
| Number of ties per 200 m spool | 1,500 | 1,200 |
| Number of ties per 80 m spool | 600 | 480 |
| Tension levels | 8 Twist modes (1.5 to 12 turns) | 8 Twist modes (1.5 to 12 turns) |
| Battery compatibility | ALPHA LITE | ALPHA LITE |
| Connected tying tool | Yes – PELLENC CONNECT LITE | Yes – PELLENC CONNECT LITE |
| Made in France | Yes | Yes |
| Warranty | 2 + 3 years | 2 + 3 years |
| |

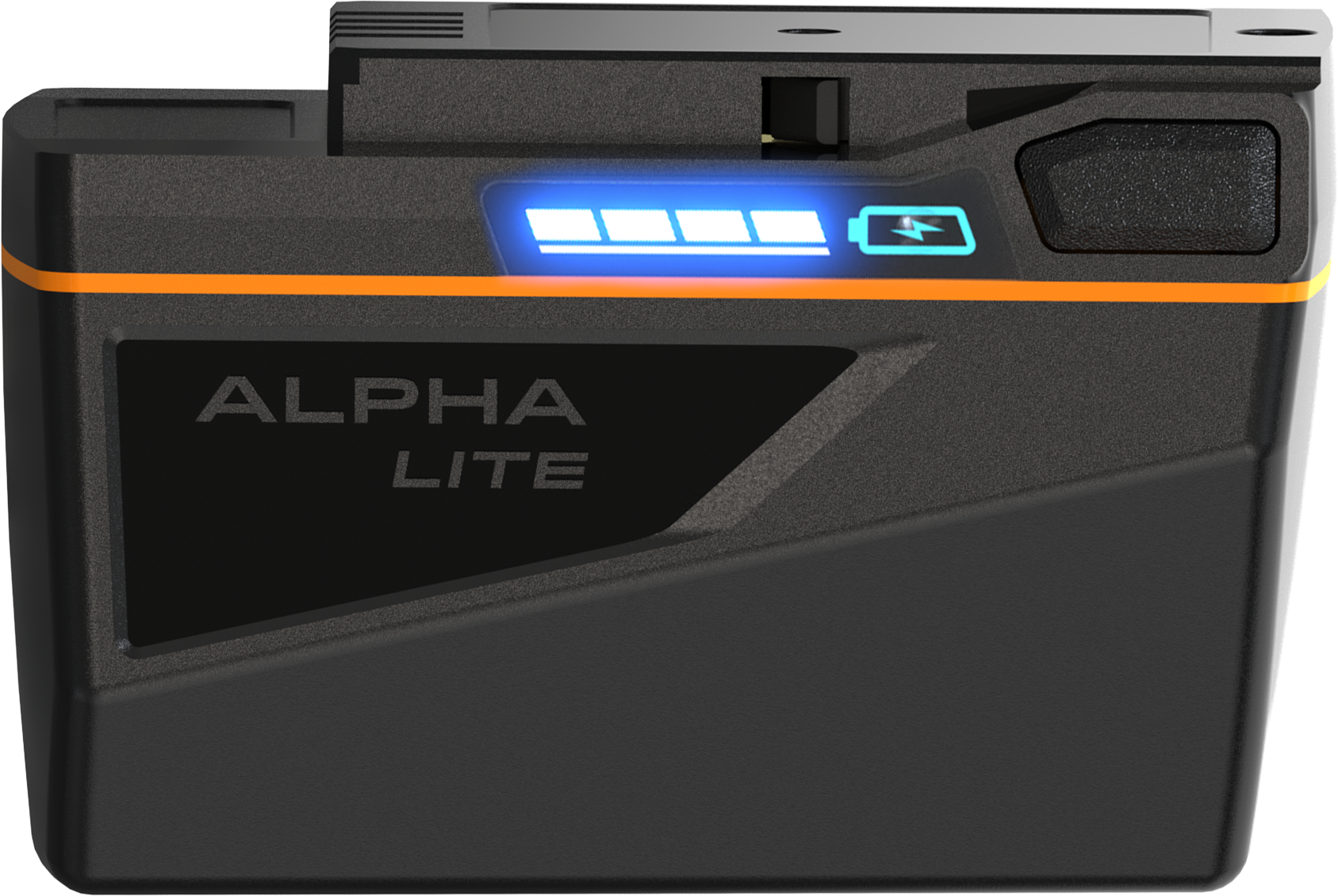

| ALPHA LITE BATTERY | |
|---|---|
| Compatibility | Pruning shears C3X F3X - V25 / F3X - H35 tying tool |
| Weight | 210 g |
| Capacity | 30.2 Wh |
| Rated voltage | 10.8 V |
| Average battery life | Pruning shears, 2 to 4 hours – 3,000 to 4,000 cuts Tying tool, 1-day – 13,000 ties |
| Charging time 0 > 100% | 1.5 hours / battery (ALPHA LITE charger) |
| Battery winterising safety | Yes |
